Description

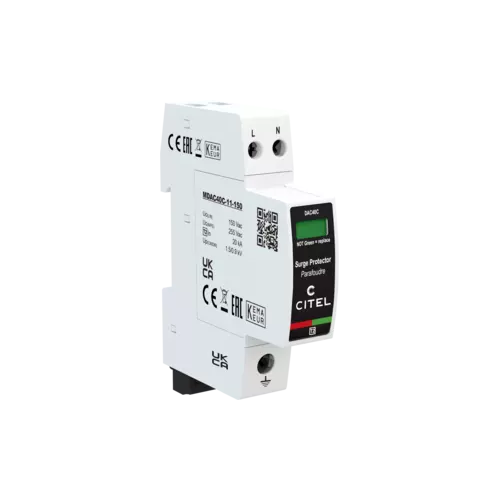

xThe pluggable compact surge protectors Type 2 or Type 3 DACC, are designed to protect electrical installation at the main switchboard or at secondary panels.. Their compact format allow to install it in limited space. This SPD is based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards. guaranteeing a maximum protection efficiency, an high impulse current capability and a improved reliability. DACC surge protectors are available in 2 impulse current versions (DAC15C et DAC40C), in multipolar configuration and in several operating voltages to protect all kind of single or 3-phase AC networks
Specifications
xMaximum Continuous Operating Voltage (Uc)
275 V AC
Nominal Discharge Current (In)
20 kA (8/20 µs waveform)
Maximum Discharge Current (Imax)
40 kA (8/20 µs waveform)
Protection Modes
Line to Neutral (L/N)
Voltage Protection Level (Up)
1.25 kV for L/N at In
Short-Circuit Withstand Capability (Isccr)
10 kA
Operating Temperature Range
-40°C to +85°C
Mounting
35 mm DIN rail (EN 60715)
Standards Compliance
IEC 61643-11, EN 61643-11, UL1449 ed.5
Remote Signaling
Optional feature available
