Description

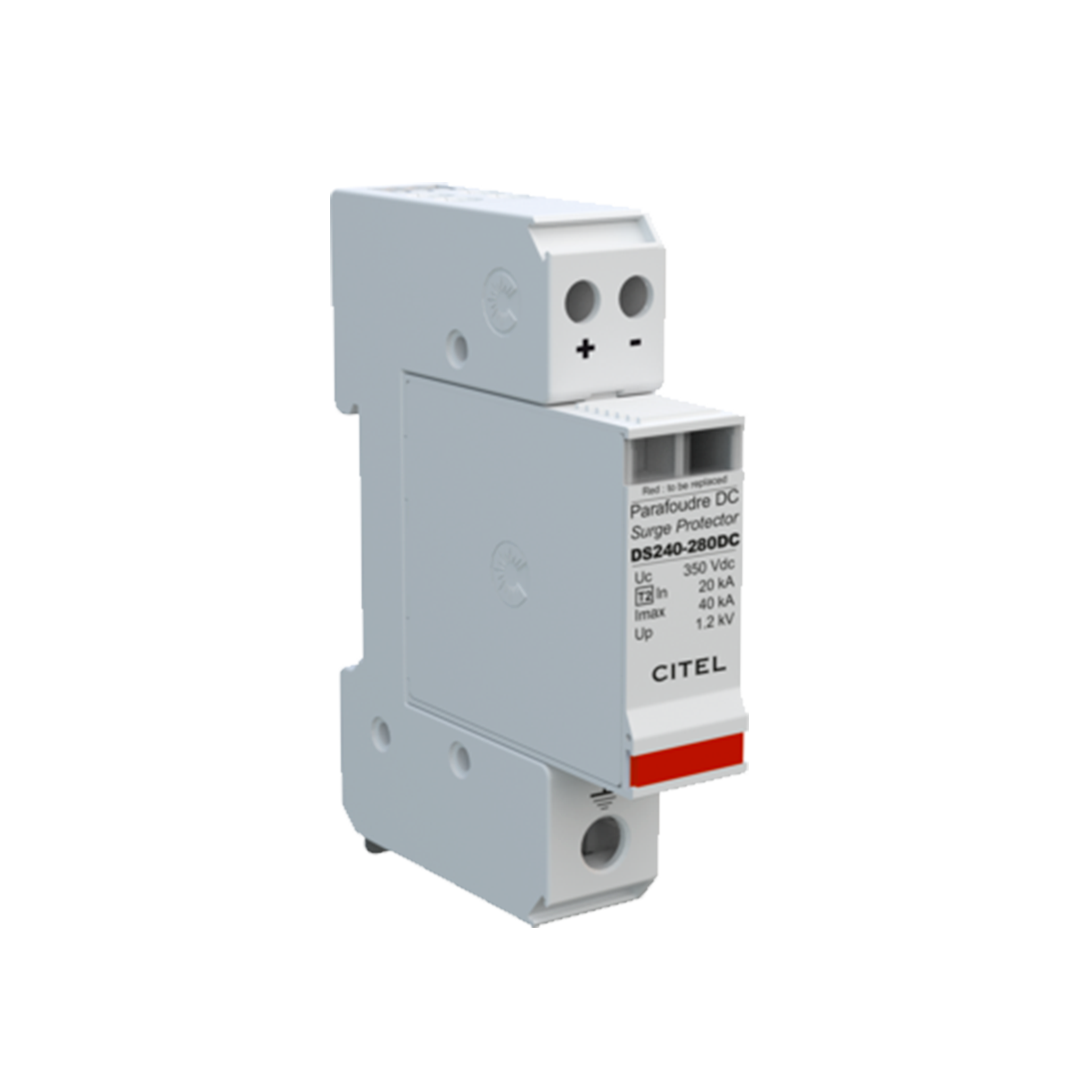

xDS210-DC surge protectors are designed to protect equipment connected to DC (and AC) power supplies from lightning surges. It is based on varistors matched to the network voltage: the varistors have thermal disconnection devices to control any end-of-life. These SPD are DIN rail compatible and is connected in parallel on the line to be protected.
Features include:
- DC or PV power surge protector
- 130 Vdc
- Compact design
- Imax: 40 kA
- Pluggable module
- Remote signaling (option)
- Very low Up protection level
Specifications
xNominal Discharge Current (In)
20 kA
Maximum Discharge Current (Imax)
40 kA
Total Maximum Discharge Current
80 kA
Max. DC Operating Voltage
180 Vdc
Protection Level (+/PE, -/PE)
620 V
SPD Type
2
Connection to Network
By screw terminals: 1.5-10mm² (active wires) and 2.5-25mm² (ground)
Failsafe Mode
Disconnection from DC line
Thermal Disconnector
Internal
Remote Signaling of Disconnection
Option DS240S-130DC: output on changeover contact
