Description

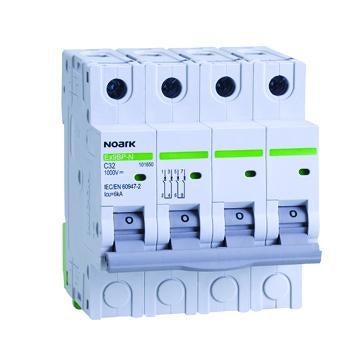

xThe Noark Ex9BP-JX(-) 4-pole Mini Circuit Breaker is engineered for DC applications requiring high reliability and safety. Rated for 1000 V DC and 20 A, it offers robust protection against overloads and short circuits with a Type C trip curve. Designed for DIN rail mounting, it ensures quick and secure installation in industrial and renewable energy systems, including solar PV and battery storage. Compliant with IEC/EN 60947-2 standards, this compact breaker provides a high breaking capacity of 10 kA and wide operating temperature tolerance for demanding environments.
Key Features
- 4-pole configuration for comprehensive circuit protection
- Rated for 1000 V DC and 20 A current
- High breaking capacity of 10 kA DC
- DIN rail mounting for ease of installation
Specifications
xProduct Name
Noark Ex9BP-JX(-) Mini Circuit Breaker, 4-pole, 20 A
Poles
4-pole
Rated Current
20 A
Rated Voltage
1000 V DC
Breaking Capacity
10 kA (DC)
Trip Curve
Type C
Mounting
DIN rail
Connection Type
Screw terminals
Standards Compliance
IEC/EN 60947-2
Operating Temperature
-25 °C to +70 °C
