Description

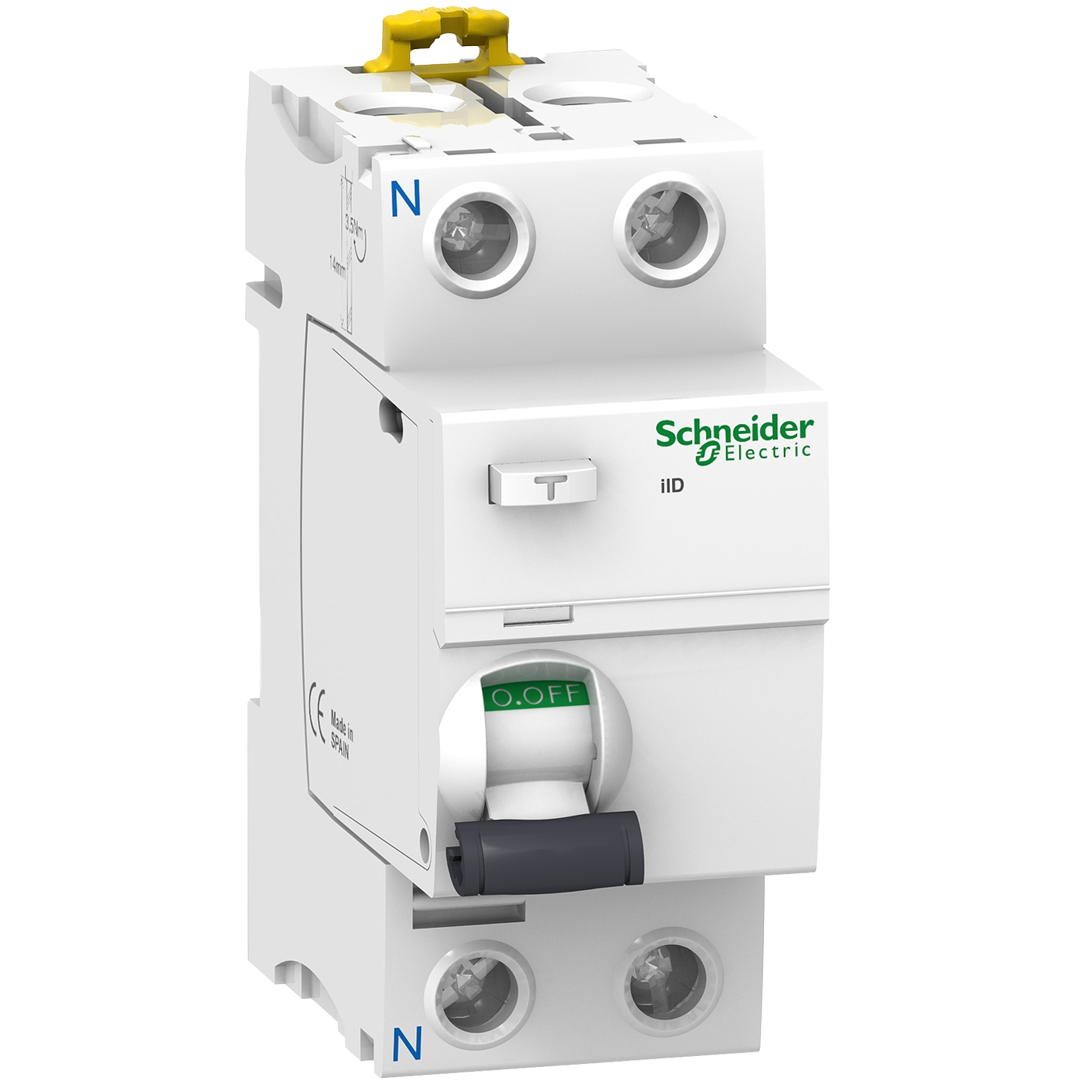

xThe Schneider Residual Current Circuit Breaker (RCCB) provides essential protection against electric shock and leakage currents in residential, commercial, and industrial installations. This 2-pole, type AC device is rated at 80 A with a 30 mA sensitivity, offering dependable safety performance for alternating current systems without additional earth fault relays.
Key Features
- Type AC detection for sinusoidal residual currents
- High rated current of 80 A for heavy-load circuits
- Fast response to earth leakage faults at 30 mA sensitivity
- Tool-free DIN rail mounting for ease of installation
Specifications
xProduct Name
Schneider RCCB
Type
AC
Number of Poles
2-pole
Rated Current
80 A
Rated Residual Operating Current
30 mA
Rated Voltage
230/400 V AC
Frequency
50/60 Hz
Mounting
DIN rail
Operating Temperature
–5 °C to +40 °C
Terminal Capacity
Up to 35 mm²
Standards Compliance
IEC/EN 61008-1
Application Areas
Residential, commercial, and light industrial
