Description

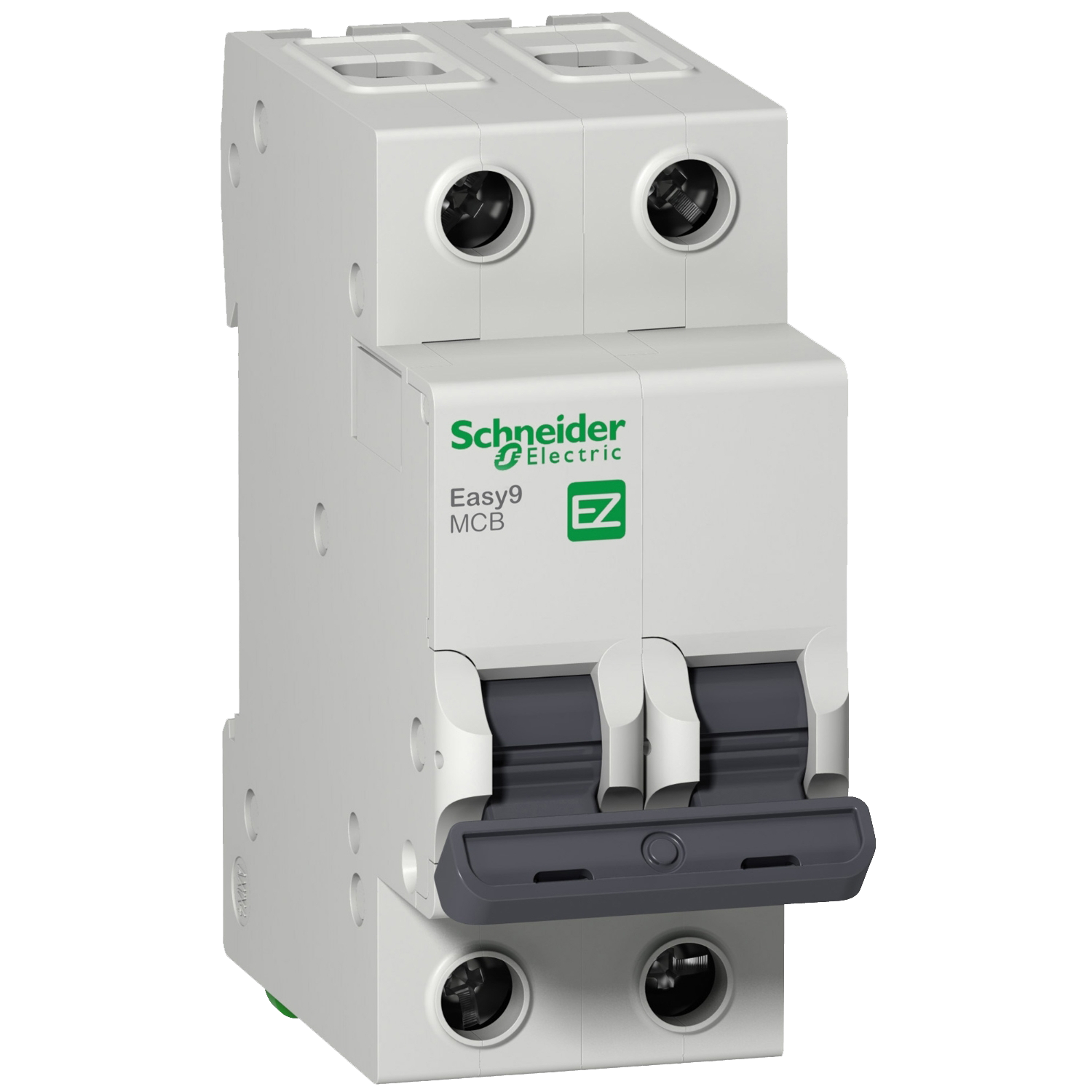

xThe Schneider Mini Circuit Breaker with a C-curve tripping profile offers robust protection for general-purpose electrical circuits. Designed with a 2-pole configuration and rated at 50 A, it is ideal for safeguarding both residential and commercial installations. This MCB provides precise performance and high breaking capacity for demanding applications.
Key Features
- Reliable short-circuit and overload protection with C-curve response
- 2-pole design for safe disconnection of both live and neutral conductors
- DIN rail mounting for quick installation in distribution boards
- Conforms to IEC/EN 60898-1 safety and performance standards
Specifications
xProduct Name
Schneider Mini Circuit Breaker, C-curve, 2-pole, 50 A
Type
C-curve
Poles
2-pole
Rated Current
50 A
Rated Voltage
230/400 V AC
Breaking Capacity
10 kA (IEC 60898)
Mounting
DIN rail
Standards Compliance
IEC/EN 60898-1
Operating Temperature
–25 °C to +40 °C
Connection Type
Screw terminals
