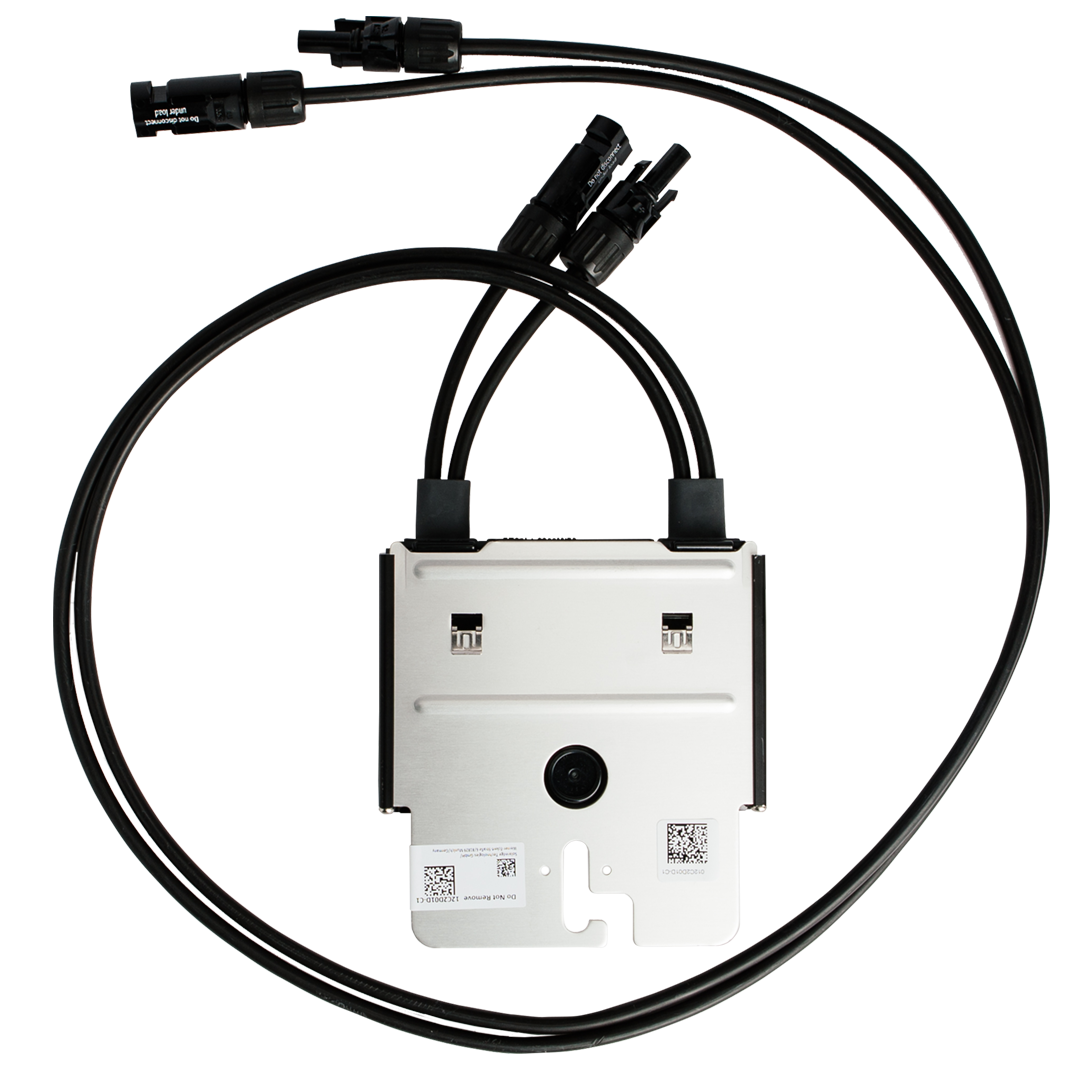

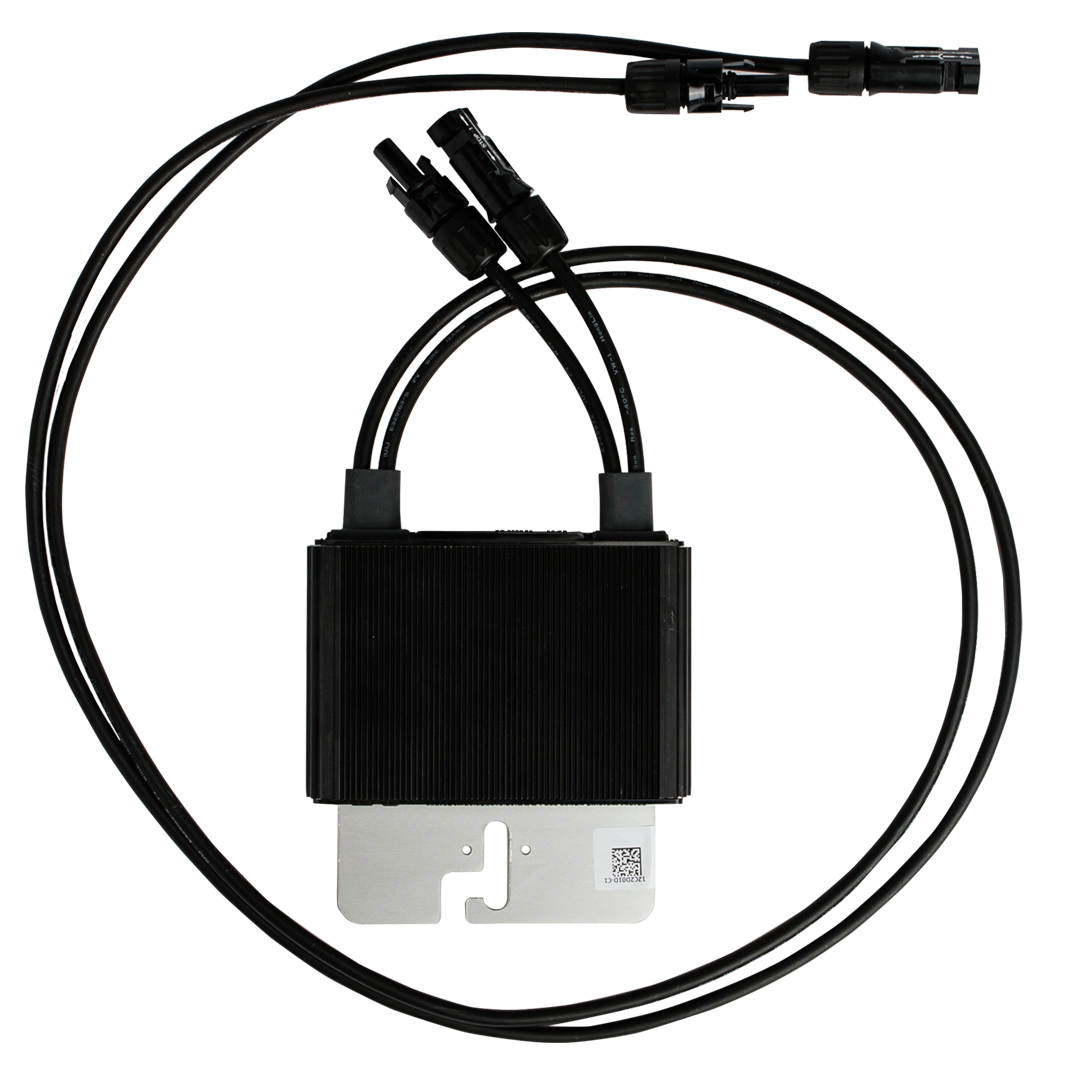

Solaredge Optimiser, 2 x 72 cell modules, portrait, 700W

PV power optimization at the module level The most cost-effective solution for commercial and large field installations   Specifically designed to work with SolarEdge inverters Up to 25% more energy Superior efficiency (99.5%) Balance of System cost reduction; 50% less cables, fuses, and combiner boxes, over 2x longer string lengths possible...
Vendor: Solaredge
SKU: P700-5R M4M RM
Availability: In stock
Product type: Solar PV Optimisers
Please hurry! Only 390 left in stock
Description
Description
x

PV power optimization at the module level The most cost-effective solution for commercial and large field installations

  
  • Specifically designed to work with SolarEdge inverters
  • Up to 25% more energy
  • Superior efficiency (99.5%)
  • Balance of System cost reduction; 50% less cables, fuses, and combiner boxes, over 2x longer string lengths possible
  • Fast installation with a single bolt
  • Advanced maintenance with module-level monitoring
  • Module-level voltage shutdown for installer and firefighter safety
  • Use with up to two PV modules connected in series or in parallel
Specifications
Specifications
x

Parameter

  

Design: PV Power Optimiser

  

Model: P700

  

Input Connector: MC4(2)

  

Output Connector: MC4

  

RoHS: Yes

  

  

  

Mechanical data

  

Overvoltage Category: II

  

Weighted Efficiency: 98.6%

  

Maximum Efficiency: 99.5%

  

Maximum Short Circuit Current (Isc): 11.75Adc

  

Input Wire Length: 0.16m

  

Dimensions (W x H x D): 129 x 153 x 42.5mm

  

Weight (including cables): 834grams

  

  

  

Electrical data

  

Rated Input DC Power: 700W

  

Absolute Maximum Input Voltage: 96Vdc

  

MPPT Operating Range: 12.5 – 80Vdc

  

Maximum Output Current: 15Adc

  

Maximum Output Voltage: 80Vdc

  

Safety Output Voltage per Power Optimiser: 1 ± 0.1Vdc

  

Maximum Allowed System Voltage: 1000Vdc

  

Relative Humidity: 0 - 100%

  

  

  

Ambient conditions

  

Operating Temperature Range (˚C/˚F): -40 to +85 / -40 to +185

  

Protection Rating: IP68 / NEMA6P

Documents
Documents
x

Datasheet
