6kW Solis Inverter + Synapse 5K0 Battery Kit

Solis S6 6kW Hybrid Inverter & Synapse 5K0 Lithium Battery Kit Single-Phase, Low Voltage Energy Storage Solution. This kit combines the high-performance Solis S6 6kW Hybrid Inverter with the reliable Synapse Lithium Battery 5K0, delivering a complete, fully compatible residential or small commercial energy storage system. Designed for efficiency, flexibility,...
Vendor: Rubicon
SKU: RUB-S6-SYN5K
Availability: In stock
Product type: Solis + Synpase Energy Kit
Please hurry! Only 31 left in stock
Description
Description
x

Solis S6 6kW Hybrid Inverter & Synapse 5K0 Lithium Battery Kit

Single-Phase, Low Voltage Energy Storage Solution. This kit combines the high-performance Solis S6 6kW Hybrid Inverter with the reliable Synapse Lithium Battery 5K0, delivering a complete, fully compatible residential or small commercial energy storage system. Designed for efficiency, flexibility, and resilience, the pairing ensures seamless communication between inverter and battery, optimising energy usage and backup power functionality – all backed by a 10-year warranty on both components for long-term peace of mind.

Solis 6kW Inverter Key Features:

  • 6kW nominal output power
  • Low-voltage battery compatibility
  • 2 x MPPTs with a wide DC input range
  • Integrated EPS port for backup power (up to 5kW)
  • WiFi or LAN remote monitoring via Solis Cloud
  • IP65-rated for outdoor or indoor use
  • 10-year manufacturer’s warranty

Synapse 5K0 Key Battery Features:

  • 5.12kWh usable energy storage
  • High cycle life (6000+ cycles @ 90% DoD)
  • Modular and scalable design
  • Built-in BMS for real-time battery protection
  • Stable chemistry with low thermal risk
  • Easy wall or floor-mounted installation
  • 10-year product warranty

System Compatibility & Integration

The Solis inverter and Synapse battery communicate directly via CAN protocol, enabling intelligent charge/discharge control and enhanced system reliability. Ideal for hybrid systems, time-of-use optimisation, and backup applications, this solution supports increased energy independence and lower grid reliance.

Specifications
Specifications
x

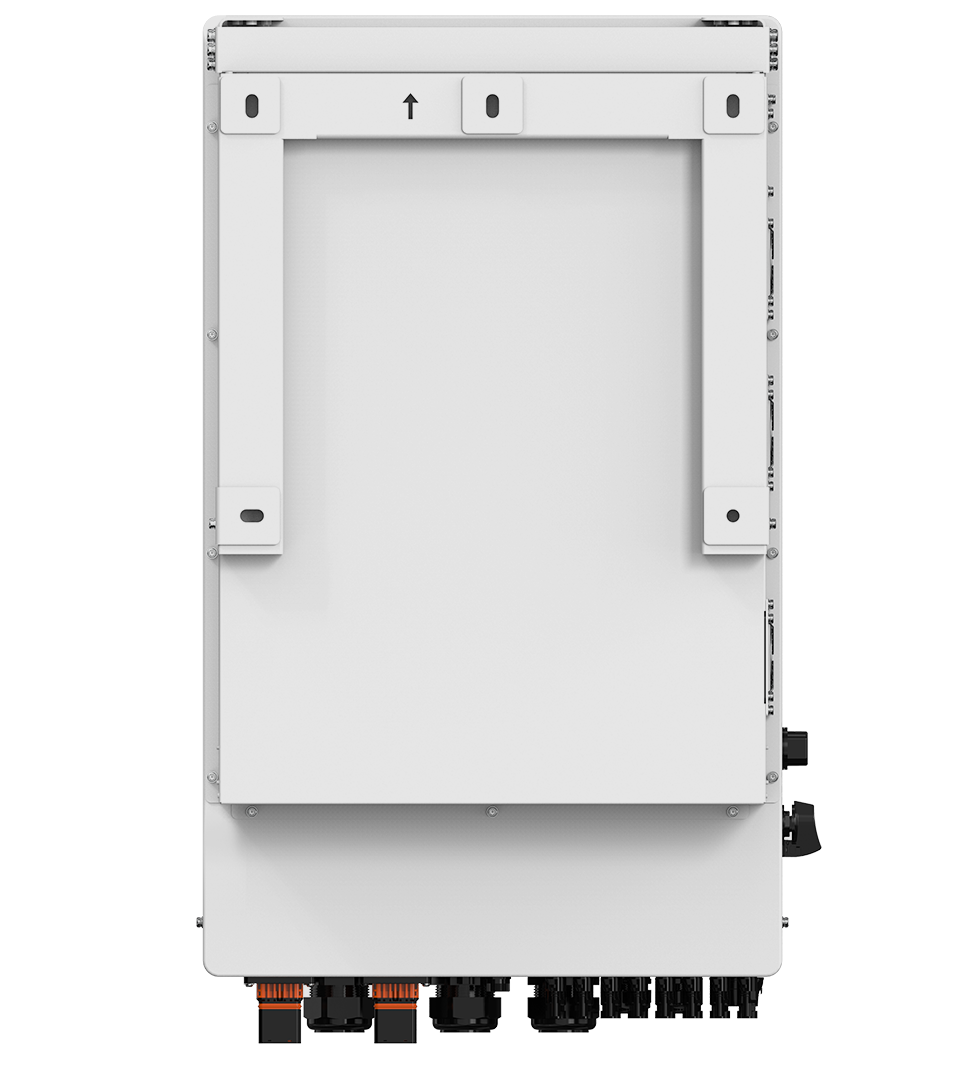

Solis S6 6kW Hybrid Inverter




Recommended Max. PV Power
9.6 kW
Max. Charge / Discharge Power
6 kW
Max. Charge / Discharge Current
135 A
Rated Output Power
6 kW
Max. Apparent Output Power
6.6 kVA
Rated Grid Output Current
27.3 A / 26.1 A
Max. Output Current
30 A
Max. Input Current (AC Grid Side)
40 A
Rated Output Current (Backup)
27.3 A / 26.1 A
Max. Output Current (Backup)
40 A


Synapse 5kW Lithium Battery




Battery Power
5kW
Battery Rating
1C
Cell Type
LiFePO₄
Overall Capacity
4.8kWh
Nominal Voltage
51.2Vdc
Voltage Range
46.5 - 58.4Vdc
Max Charge/Discharge Current
-100A / +100A (Peak 130A)
Depth of Discharge (DoD)
Up to 95%
Cycle Life
>6000 Cycles @ 90% DoD (25°C)
Max Batteries in Parallel
15 (Max 5 Stacked)
Cluster Net Capacity
66 - 462kWh (With LV HUB)
BMS Voltage Protection
45.5 - 58.4Vdc
BMS Temperature Range
Discharge -20°C to +55°C, Charge 0°C to +55°C
Ingress Protection
IP30 (Indoor Use Only)
Installation Requirements
Indoor, Ventilated, Low-Voltage Inverters Only (40-58.54Vdc), Away from Flammable Gases/Liquids
Dimensions
580 x 490 x 155mm
Weight
46kg
Communication Interfaces
RS485, CAN, RS232, Wi-Fi & Bluetooth (Via External Device)
Compliance Standards
EN IEC 61000-6-1: 2019, EN IEC 61000-6-2: 2019, EN IEC 61000-6-3: 2021, EN IEC 61000-6-4: 2019, IEC 62619 (CB), IEC 62368, RoHS Compliant
Safety Classification
Dangerous Goods DG9, Category 3480 | UN 38.3 - Lithium-Ion Battery
