Description

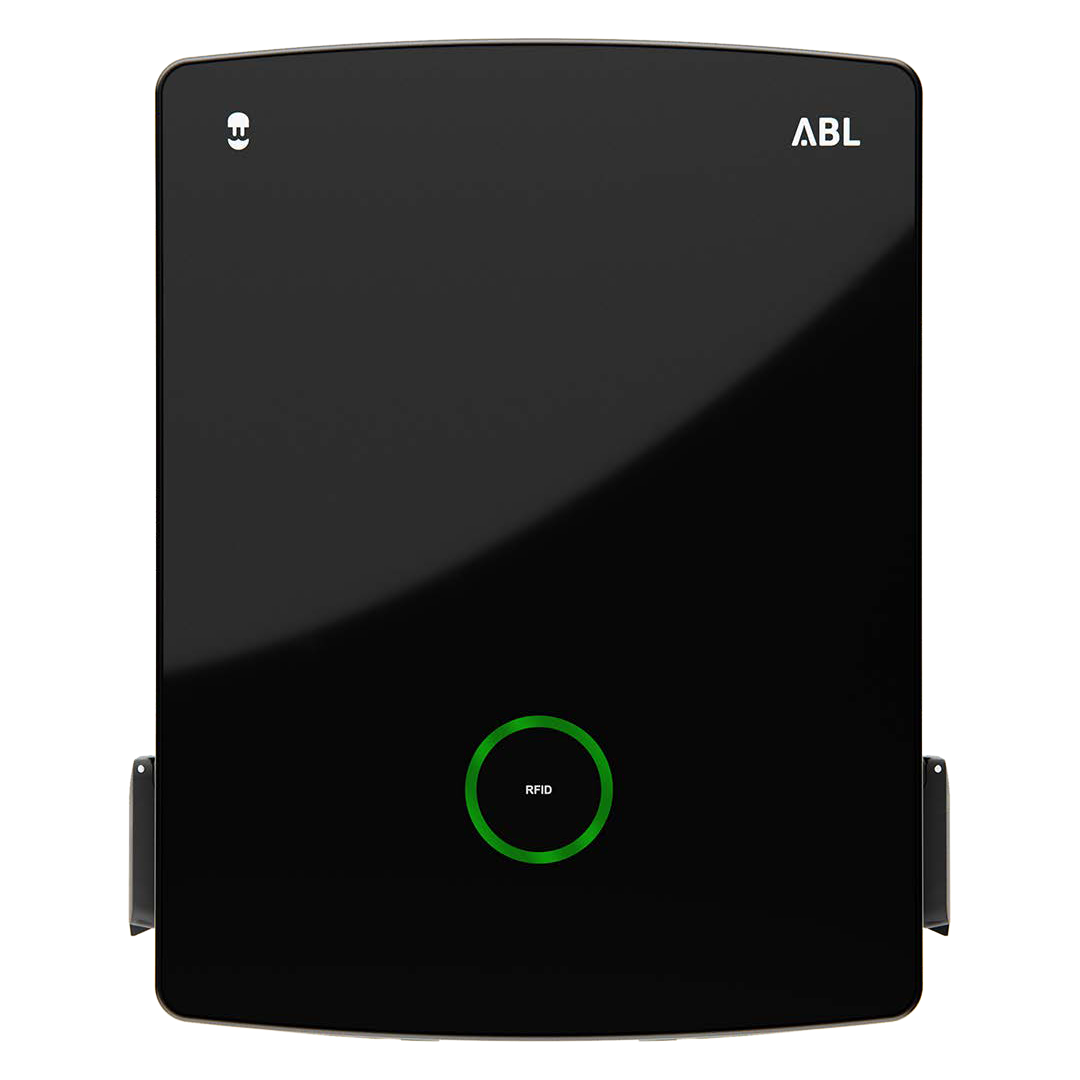

xThe Wallbox eM4 Twin is a state-of-the-art, future-proof electric vehicle (EV) charging solution engineered by Wall Box Chargers S.L.U. Designed for versatility and scalability, this 22 kW dual-socket wallbox is ideal for businesses, housing associations, car parks, and private residences. Featuring two lock- UK spellinglockable Type 2 charging sockets with shutters, it enables simultaneous charging of two vehicles, delivering maximum efficiency and convenience. Manufactured in Germany to the highest safety and quality standards, the eM4 Twin combines robust design with advanced connectivity, making it a reliable and adaptable choice for modern EV charging needs.
Features
- 22 kW Charging: Single Type 2 socket supports up to 22 kW (3-phase) charging.
- Smart Connectivity:OCPP, ISO 15118, Modbus TCP via LTE, LAN, or WLAN; scalable up to 100 units.
- Advanced Safety & Load Control:RCCB, DC fault detection, overcurrent protection, and static/dynamic load management.
- Robust & User-Friendly:IP55/IK10 housing, RFID/QR access, MID metre, easy install, wide temp range.
Benefits
- Versatile & Scalable: Suitable for fleets and complexes with up to 100 networked charge points.
- Efficient Installation & Operation: Quick setup, app-based config, and load management reduce time and energy costs.
- User-Friendly Experience: Easy access via app, RFID, or QR, with MID metering for transparent billing.
- Reliable & Future-Ready: Durable, safe design with OCPP, Modbus TCP, and ISO 15118 support.
Specifications
xCharging Power
22 kW (3-phase)
Vehicle Connection
Twin lockable Type 2 sockets (IEC 62196-2) with shutters, 32 A max charging current
Mains Supply
230/400 V (3-phase), 32 A, 50 Hz, ≤ 10 mm² conductor or ≤ 25 mm cable diameter
Protection Components
RCCB Type A, 30 mA, DC fault detection ≥ 6 mA, Overcurrent protection at 120% (10 s)
Connectivity
LTE, LAN, WLAN backend, OCPP 1.5/1.6, Smart Charging, Modbus TCP, LAN/WLAN Controller/Extender
Energy Metering
MID-compliant energy metre
Safety and Durability
IP55, IK10
Operating Conditions
-25 to 40°C operating, -30 to 75°C storage, 5-95% humidity (non-condensing)
Physical Specifications
516 x 428 x 145 mm (395 mm without protrusions), ~10.5 kg, Plastic housing (RAL 9011/9017 black)
Load Management
Static: up to 30 points (scalable to 100), Optional dynamic with ABL Energy Meter
