Description

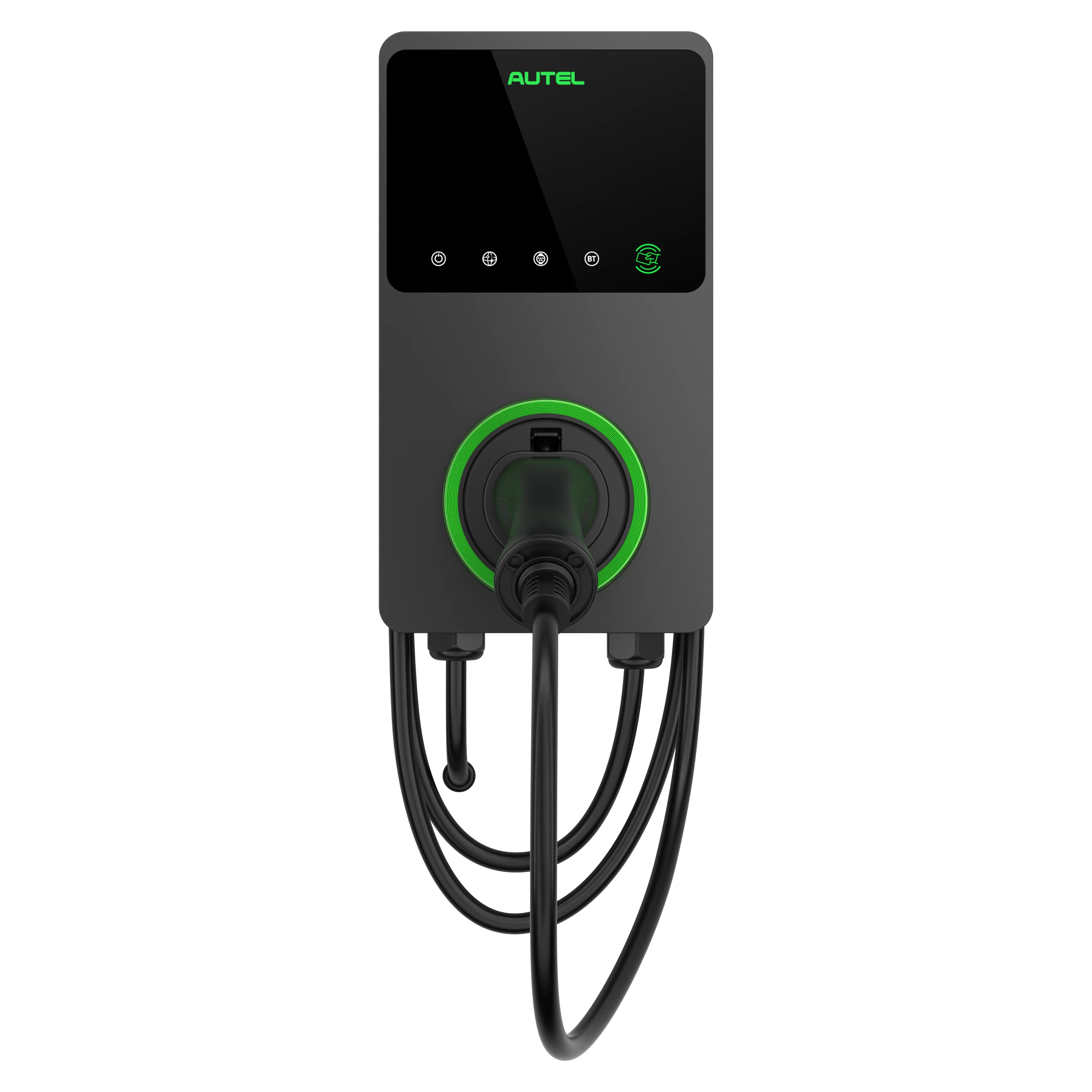

xThe Autel MaxiCharger AC Wallbox is a premium 7.4kW Level 2 AC charging solution designed for residential, workplace, and light commercial use. Featuring a sleek dark grey finish and a 5-metre tethered cable, this smart charger combines cutting-edge technology with robust durability, delivering reliable and efficient EV charging.
Features
- 7.4kW Single-Phase Charging: Provides up to 7.4kW of power for fast and efficient EV charging.
- 5m Tethered Cable: Integrated cable for convenience, eliminating the need for separate connectors.
- Triple Protection Technology: Charger+Cloud BMS+VCI safeguards with real-time monitoring.
- Smart Connectivity: Supports Wi-Fi, Bluetooth, Ethernet, and optional 4G for seamless integration.
Benefits
- Enhanced Safety & Reliability: Intelligent battery diagnostics reduce maintenance risks.
- Operational Efficiency: Dynamic load balancing prevents grid overload and optimises power use.
- Scalable Deployment: SaaS-based management via Autel Cloud simplifies installation and expansion.
- User-Friendly Management: Remote monitoring, scheduling, and tracking via the Autel Charge app.
- Durability in All Conditions: IP65-rated with a wide operating temperature range.
- Revenue Potential: RFID and app-based controls support pay-per-use or subscription models.
Specifications
xPower Output:
7.4kW (32A, single-phase, 230V AC)
Input Voltage:
230V ± 15%, 50/60 Hz
Charging Connector:
Tethered Type 2 cable, 5 meters
Protection Rating:
IP65 (dust and water resistance)
Dimensions:
336 x 187 x 85 mm (H x W x D)
Weight:
Approximately 3.6 kg (excluding cable)
Operating Temperature:
-40°C to +55°C (full power operation, no derating)
Connectivity:
Wi-Fi, Bluetooth, Ethernet, RS485, optional 4G
Safety Features:
AC 30mA + DC 6mA leakage protection, overvoltage/undervoltage protection, surge protection
Certifications:
CE, RoHS, compliant with ISO 15118 Plug-and-Charge standard
Mounting:

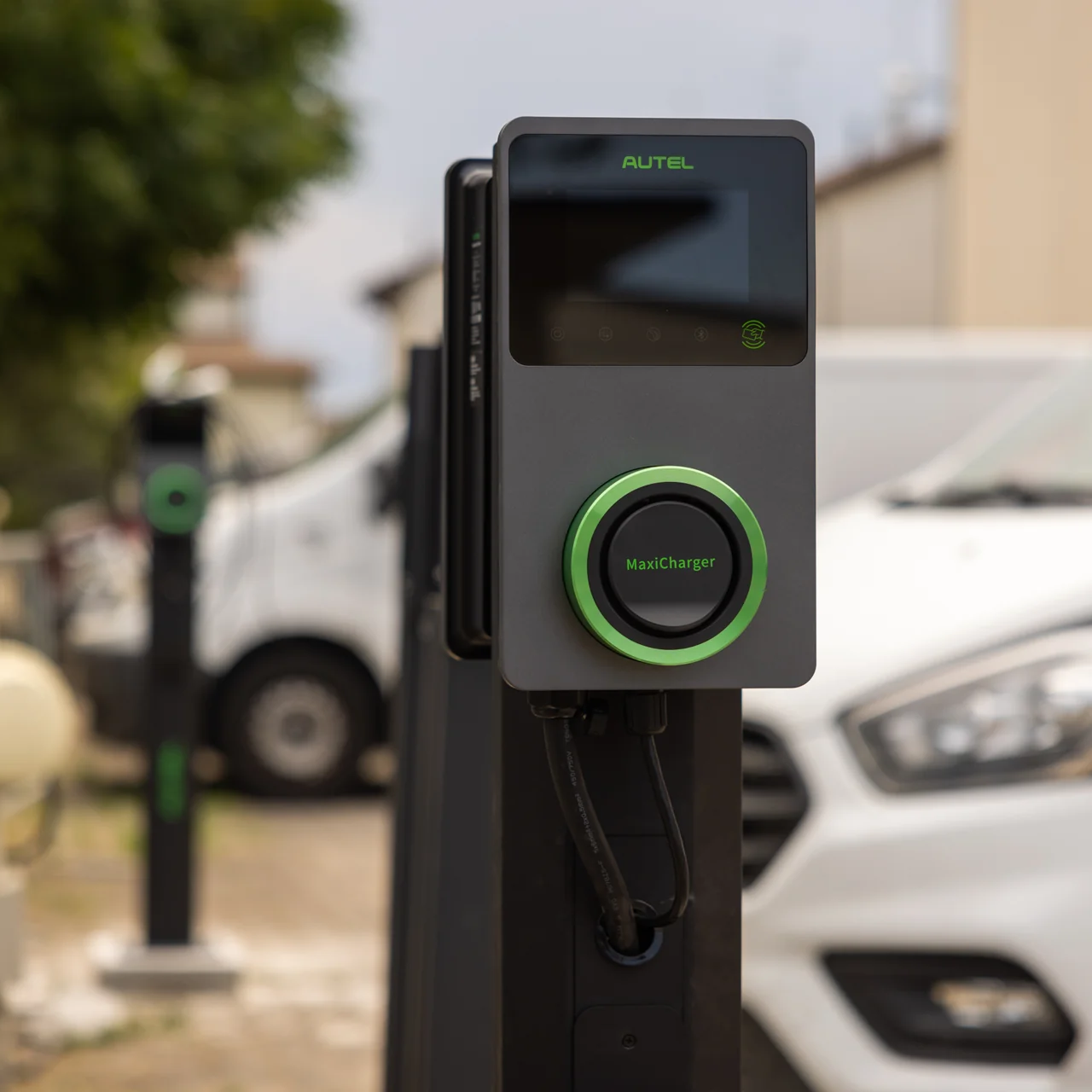

Wall or pedestal installation (pedestal sold separately)
Warranty:
3-year limited warranty
Built-in 5-metre tethered cable, eliminating the need for a separate connector.
