Description

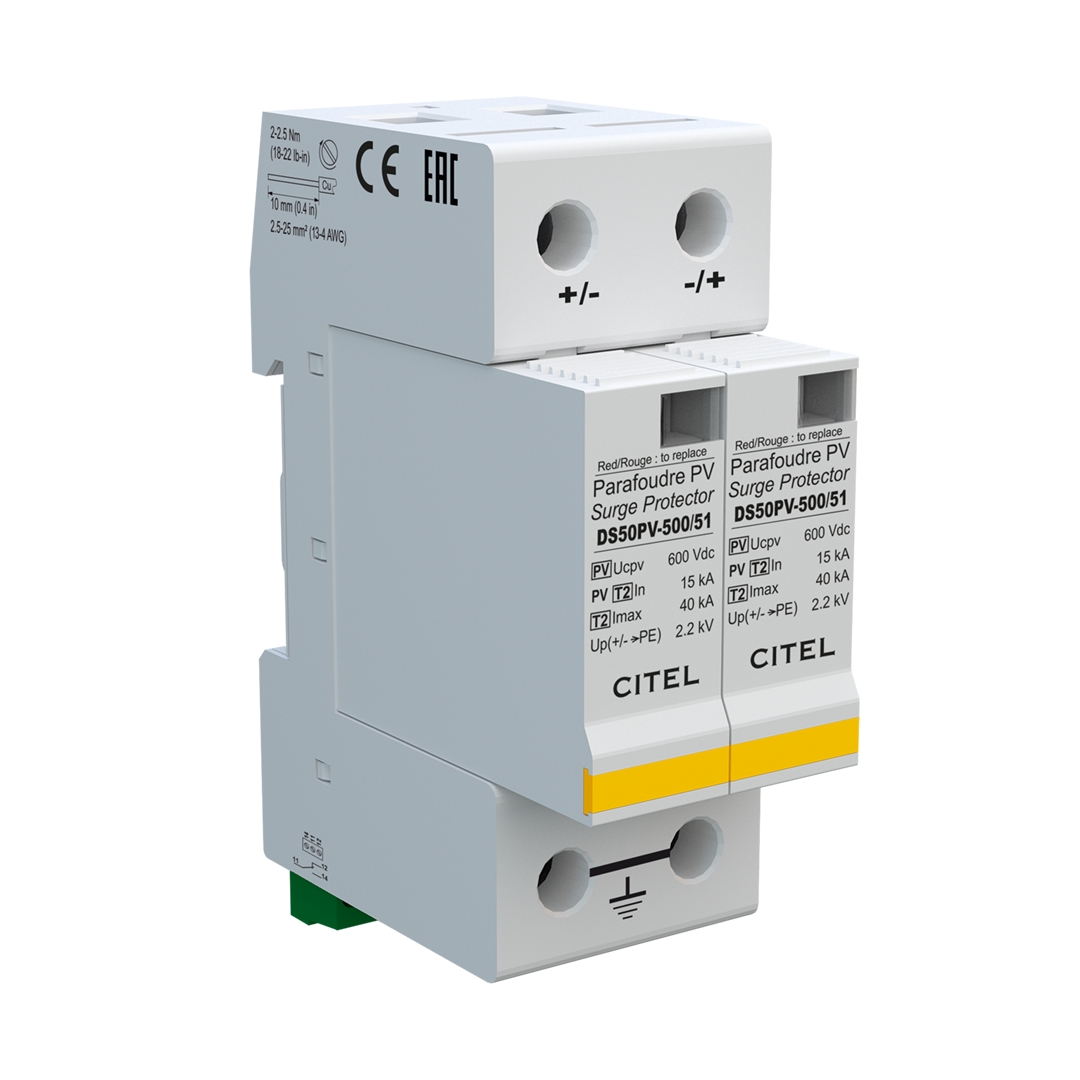

xDS50PV/51 are type 2 surge protectors are designed to protect against lightning surge voltages in photovoltaic power supply network. Based on the use of specific varistors, providing a protection in common mode or common and differential mode.
Features
- Type 2 surge protector for Photovoltaic
- PV Voltage: 600 Vdc
- In: 15 kA
- Imax: 40 kA
- Pluggable module
- Remote signaling (option)
- UTE C61-740-51, EN 50539-11 compliance
Specifications
xTechnology:
MOV
Connection to Network:
By Screw Terminals: 2.5-25 mm²
Format:
Plug-in Modular Box
Thermal Disconnector:
Internal
Mounting:
Symmetrical Rail 35 mm (EN 60715)
Housing Material:
Thermoplastic UL94 V-0
Failsafe Mode:
Disconnection SPD of the PV Line
Disconnection Indicator:
2 Mechanical Indicators - Green/Red
Spare Module(s):
DSM50PV-600/51
Operating Temperature Range:
-40/+85°C
Alternatives
x-
Citel DS50PVS-600/51 SPD, PV, type 2, 600VDC, 15kAVendor: CitelSKU: 480471DS50PV/51 are type 2 surge protectors are designed to protect against lightning surge voltages in photovoltaic power supply network. Based on the use of specific varistors, providing a protection in common mode or common and differential mode. DS50PV/51 surge protectors use varistors as the...
-
Citel DS50PVS-600G/12KT1 SPD, type 1+2, 600VDC, 15kAVendor: CitelSKU: 482443The Citel DS50PVS-600G/12KT1 SPD (Surge Protective Device) is an advanced solution designed to safeguard photovoltaic systems against damaging transient voltage surges. Engineered with precision and expertise, this device offers robust protection for solar installations, ensuring the longevity and reliability of your renewable energy infrastructure....
-
Citel DS50PV-500/51 SPD, type 2, PV, plug-in, 500VDC, 15kAVendor: CitelSKU: 480121The Citel DS50PV-500/51 SPD is a Type 2 surge protective device (SPD) specifically designed for photovoltaic (PV) systems. It is a plug-in device used to protect PV installations against overvoltage events caused by lightning strikes or other electrical disturbances. Here are the specifications of...
-
Citel DS50PVS-500/51 SPD, remote signal, type 2, PV, 500VDC, 15kAVendor: CitelSKU: 480171The DS50PVS-500/51 is a type 2 surge protector specifically designed to protect against lightning surge voltages in photovoltaic power supply networks. It utilizes specific varistors to provide protection in common mode (between the PV modules and ground) or both common and differential modes (between...
