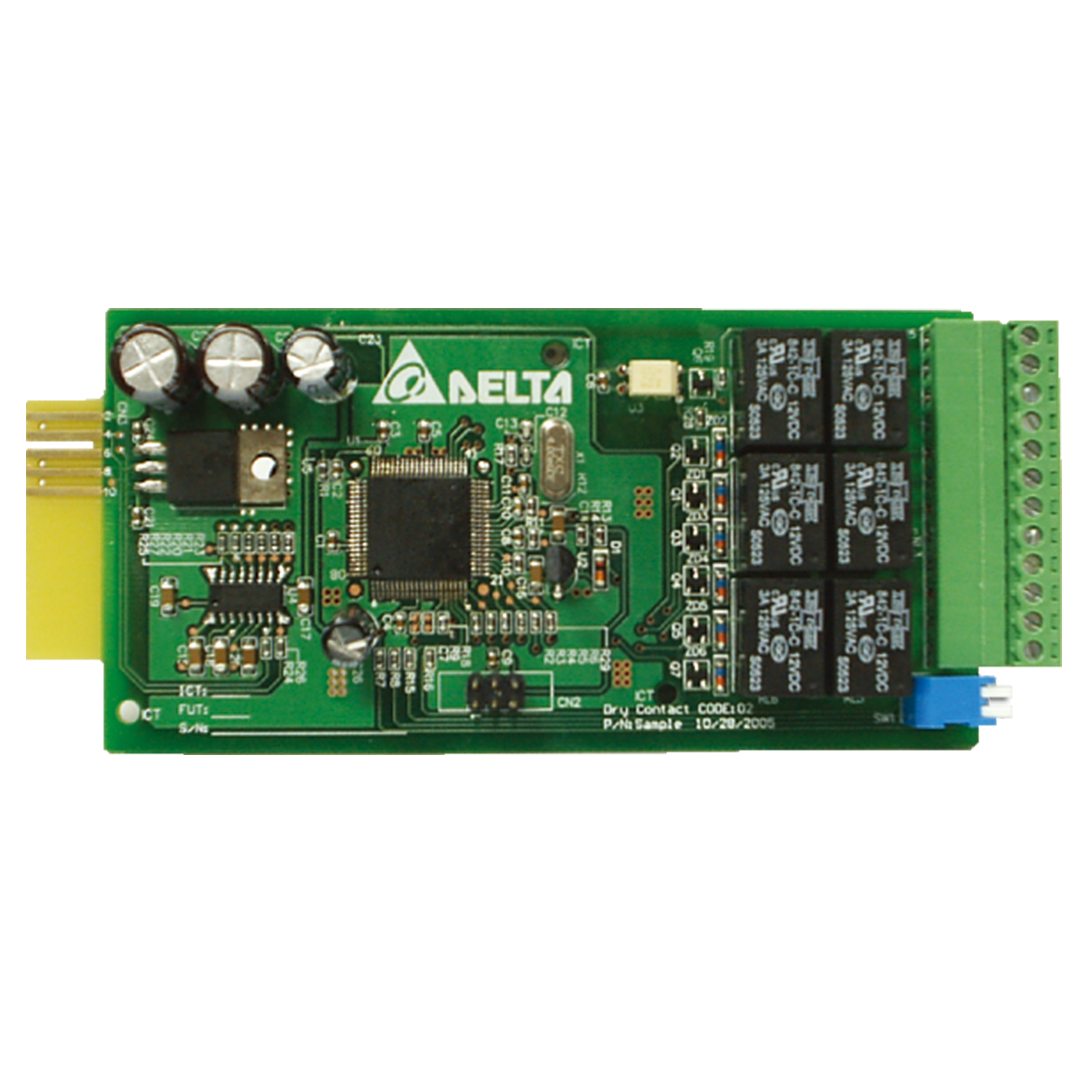

Delta F Relay I/O card F for UPS, 8 - 20 VDC, 1.2W, 130 x 60mm

F RELAY I/O CARD F FOR UPS

Relay I/O card expands communication ability of the UPS and can be installed in Smart slot. Card allows monitoring of UPS with 6 output programmable dry contacts. 1 input dry contact can be set as UPS shutdown.

Features:

• UPS status information presented as 6 contact closures.
• Programmable output contacts, monitors the UPS events that users really concern in different application practices.
• Output relays can be configured to either NC (Normal Close) or NO (Normal Open).
• Configurable UPS shutdown delay time.
• Configurable input signal as shutdown UPS or battery test.
