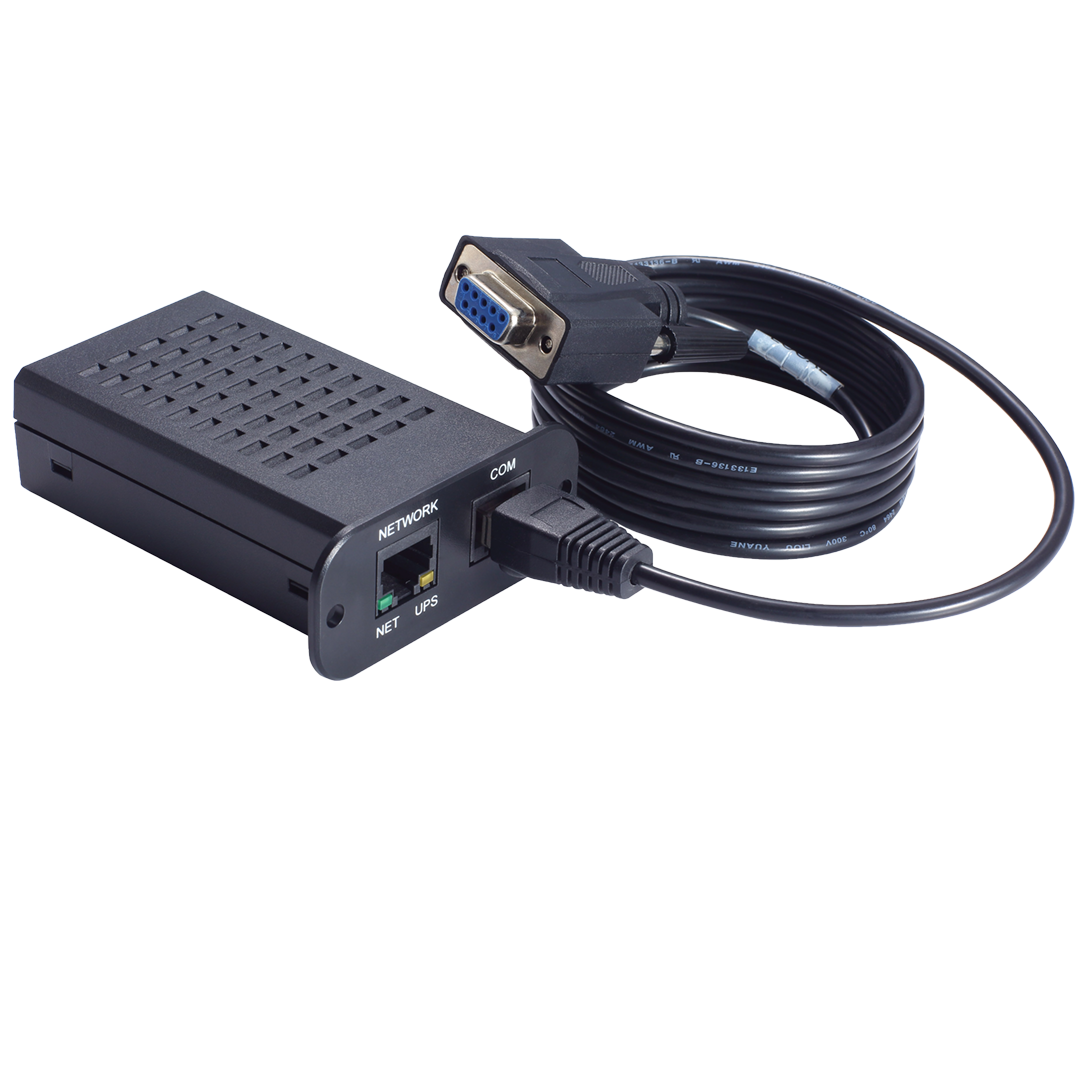

Delta Hot swappable mini SNMP card, IPv6

Functions and features

Network

SNMP

• SNMPv1, v2c and v3 protocols support; accepts NMS monitoring as well as actively sends Trap packets to target hosts; supports IPv4 and IPv6 TCP/IP protocol.

Web

• Monitor and set up through network browser with built-in web server

Protocol

• HTTP, HTTPS, Modbus TCP, Telnet, SSH, FTP, SFTP, DHCP, SMTP, SNTP, RADIUS, Syslog, and WOL

MIB

• Supports RFC1628 and Delta proprietary UPSv4 MIB, UPSv5MIB

Management

Regular power on and off

• Can set up UPS power on and off time

Regular testing

• Battery discharge test to ensure the battery is in good condition.

Regular testing

• Battery discharge test to ensure the battery is in good condition.

Smart Shutdown

• Can send power off signal to connected host actively if the host computer has Shutdown Agent installed.

Probe

• Optional environment probe can integrate ambient temperature and humidity with 4 additional digital inputs for total cabinet monitoring.

Diagnosis

Event log

• Keep date, time, and event sequence in event log file
• Keep date, time, and UPS parameter data. Can be exported into XLS file for further processing.

Reaction to events

UPS shutdown

• Keep date, time, and UPS parameter data. Can be exported into XLS file for further processing.

Email

• Send email notification to predefined recipients in case of power event
