Description

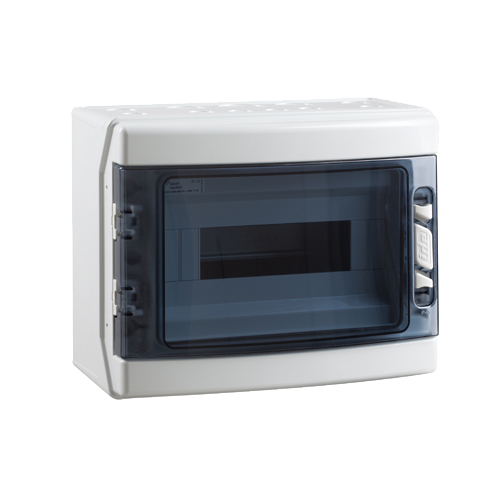

xIDE Surface Distribution Box, DIN rail mount, IP65-rated for reliable outdoor use. Made from halogen-free ABS plastic with UV protection (ISO 4892-2, Method A), ensuring safety and long-term durability. Compact design with external dimensions: 246mm (H) x 310mm (W) x 148mm (D). Earth/neutral bar not included.
Features
- IP65 enclosure for dust and water protection
- Halogen-free, fire-safe materials
- Durable ABS frame and base
- UV resistant for outdoor use
- DIN rail and surface mountable
Benefits
- Ideal for residential and small commercial (0–50kW) systems
- Withstands harsh environments and UV exposure
- Custom integration flexibility
Specifications
xProduct Type:
ABS watertight distribution boxes (Sealable)
Number of Modules:
1x12 DIN rail
Colour:
Grey RAL 7035
Window:
Transparent tinted window, UV protection polycarbonate
Maximum Operating Voltage:
1000V AC / 1500V DC
Double Insulation:
Class II
Glow Wire Resistance:
650 ºC
Ambient Temperature Range:
-25 ºC to +40 ºC
Resistance to Impact:
IK08
Degree of Protection:
IP65
