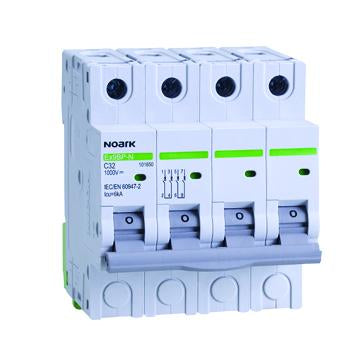

Noark Ex9BP-JX(-) Mini circuit breaker, 4-pole, 1000VDC, 16A

The Noark Ex9BP-JX(-) mini circuit breaker offers robust protection for DC electrical systems up to 1000 VDC. Designed with 4 poles and a 16 A rated current, it provides reliable overload and short circuit interruption, ensuring system safety and stability. Key Features 4-pole design for comprehensive multi-line DC protection High...
Vendor: Noark
SKU: 90129
Availability: In stock
Product type: Solar PV Balance Of System
Please hurry! Only 3 left in stock
Description
Description
x

The Noark Ex9BP-JX(-) mini circuit breaker offers robust protection for DC electrical systems up to 1000 VDC. Designed with 4 poles and a 16 A rated current, it provides reliable overload and short circuit interruption, ensuring system safety and stability.

Key Features

  • 4-pole design for comprehensive multi-line DC protection
  • High DC voltage rating of 1000 VDC for solar and industrial applications
  • 16 A rated current suitable for moderate load circuits
  • Compact and DIN rail mountable for easy integration
Specifications
Specifications
x
Product Name
Noark Ex9BP-JX(-) Mini Circuit Breaker, 4-pole, 1000 VDC, 16 A
Type
Mini circuit breaker
Poles
4-pole
Rated Current
16 A
Rated Voltage
1000 V DC
Breaking Capacity
10 kA (IEC 60947-2)
Mounting
DIN rail
Standards Compliance
IEC/EN 60947-2
Operating Temperature
–25 °C to +70 °C
Connection Type
Screw terminals
