Description

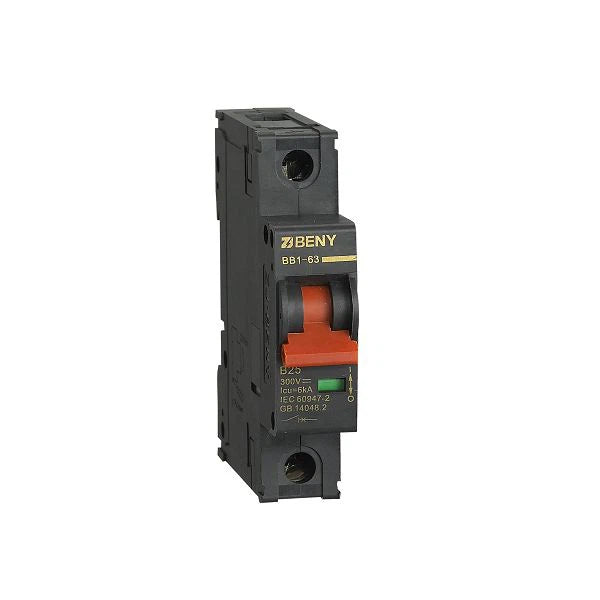

xThe Zjbeny 1-Pole Mini Circuit Breaker is engineered for DC applications up to 300 V, rated at 16 A. It offers reliable protection against overloads and short circuits in small DC electrical systems, such as solar PV installations. Its compact design and DIN rail mount simplify installation and maintenance. The thermal-magnetic trip mechanism ensures fast and secure disconnection to protect your equipment and system safety.
Key Features
- Rated voltage of 300 V DC with 16 A nominal current
- Single-pole configuration with thermal-magnetic tripping
- Compact DIN rail mountable design with IP20 protection
- Complies with IEC/EN 60947-2 standards, suitable for high breaking capacity DC circuits
The product conforms to the following compliance standards:
Specifications
xModel
BB1-63
Number of Poles
1P (Single Pole)
Standard Compliance
IEC 60947-2
Utilisation Category
DC-21B
Rated Operational Voltage (Ue)
300V DC
Rated Current
16A
Mechanical Endurance
20,000 cycles
Electrical Endurance
4,000 cycles
Degree of Protection
IP20 (switch body), optional IP65 PC enclosure
Polarity
Non-polar design
