Description

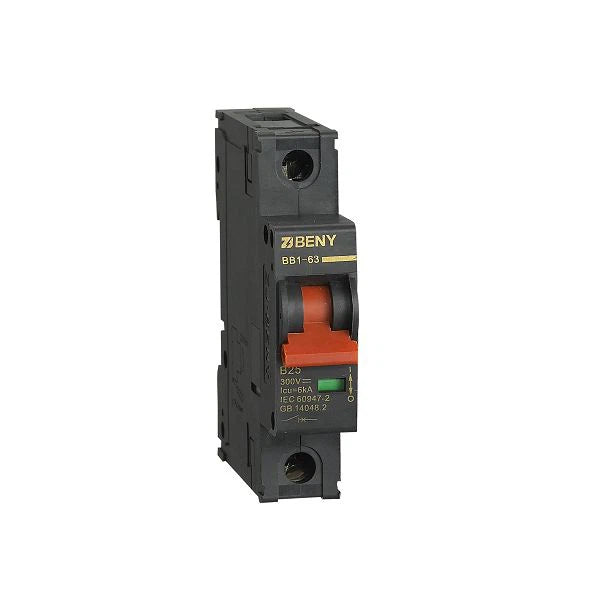

xThe Zjbeny 1-pole mini circuit breaker is designed for reliable protection of DC electrical circuits up to 300 VDC. Compact and easy to install, it provides rapid fault detection and interruption to safeguard equipment in solar PV, industrial, and other DC applications.
Key Features
- Rated for DC voltages up to 300 VDC
- Single pole for focused circuit protection
- Compact design suitable for DIN rail mounting
- Thermal-magnetic trip mechanism for precise fault response
The product conforms to the following compliance standards:
Specifications
xRated Voltage
300V DC
Rated Current
63A
Number of Poles
1P
Breaking Capacity
6kA (DC)
Standard Compliance
IEC 60947-2
Arcing Time
≤ 3ms
Trip Curve
C curve
Mounting Type
DIN rail (35mm)
Operating Temperature Range
-30°C to +70°C
Enclosure Protection
Optional IP65 PC enclosure
