Description

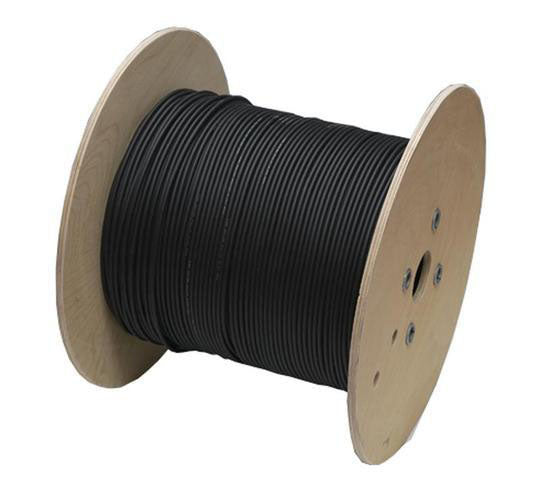

xThe Zonn Kabel EN50618 Solar Cable is engineered for high-performance photovoltaic systems, offering excellent durability and safety at a rated voltage of 1.5kV. Featuring a 10mm² conductor, this black solar cable complies with the EN50618 standard, ensuring resistance to UV, weather, and mechanical stress for reliable long-term outdoor use.
Key Features
- Compliant with EN50618 standard for solar cable applications
- Rated for 1.5kV DC systems ensuring high voltage resistance
- UV-resistant, halogen-free, and flame-retardant insulation
- Robust construction suitable for outdoor and harsh environments
Specifications
xConductor Material
Tinned copper (class 5) in accordance with CEI EN 60228.
Minimum Bending Radius (Cable fix standing)
Minimum 4 times the cable diameter
Insulation Material
Halogen-free elastomer in accordance with EN 50618.
Minimum Bending Radius (Move standing)
Minimum 4 times the cable diameter
Outer Sheath Material
Halogen-free elastomer in accordance with EN 50618.
Cable Marking
ZONN KABEL H1Z2Z2-K, 1x section mm², TÜV Rheinland certification number R 60137620, maximum 1.8kV DC.
Sheath Color
Black, Red, Blue.
Temperature Ratings (Working)
-40°C to +90°C.
Temperature Ratings (Characteristic)
+90°C.
Temperature Ratings (Overload)
+120°C.
Temperature Ratings (Short Circuit)
Maximum +250°C for 5 seconds.
Voltage Test
6,500V AC; 15,000V DC.
Electric Resistance
Tested according to EN 60228 Class 5 standards.
-
-
