Description

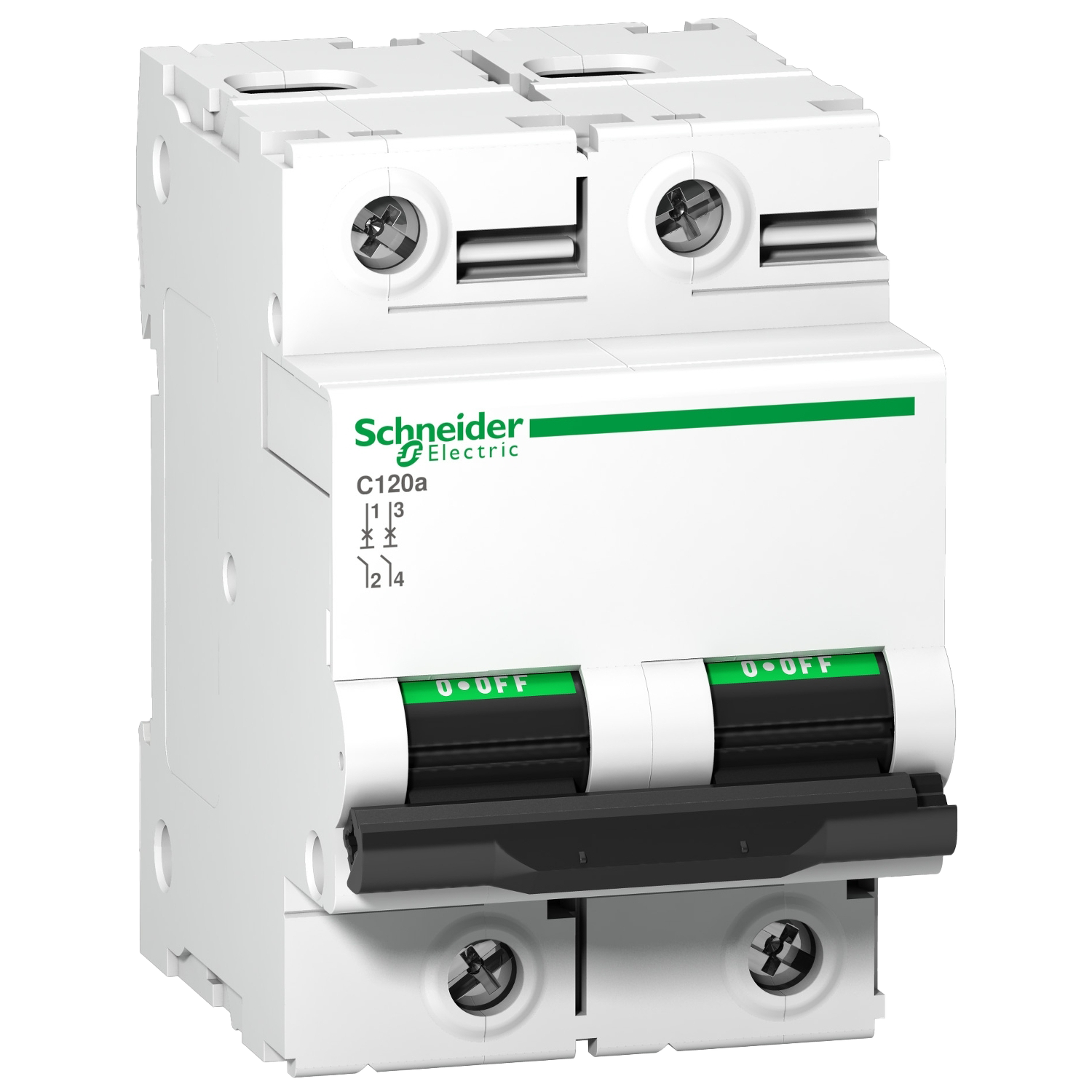

xThe Schneider Miniature Circuit-Breaker (MCB) with C-curve characteristics is engineered to deliver dependable protection for electrical circuits against overloads and short circuits. This 2-pole device, rated at 80 A with a 5 kA breaking capacity, is designed for industrial and commercial applications requiring medium fault level protection and reliable circuit isolation.
Key Features
- 2-pole configuration for safe disconnection of live and neutral conductors
- High 80 A current rating for heavier loads
- C-curve tripping for general-purpose applications
- 5 kA short-circuit breaking capacity for medium fault levels
Specifications
xProduct Name
Schneider Miniature Circuit-Breaker, 2-pole, 80 A
Tripping Curve
C-curve
Number of Poles
2
Rated Current
80 A
Rated Voltage
230/400 V AC
Breaking Capacity
5 kA (IEC/EN 60898-1)
Mounting Type
DIN rail
Terminal Type
Screw clamp terminals
Operating Temperature
–25 °C to +40 °C
Standards Compliance
IEC/EN 60898-1
